Material is QT600

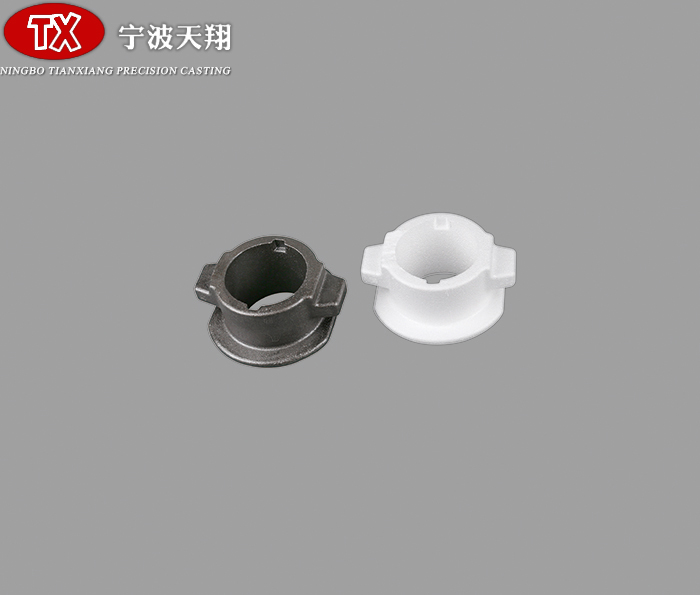

According to the processing technology of iron penetration of EPC casting, the ratio of residual height to width of inner rubber inlet after polishing is less than 0.3mm in the plan, the residual height of inner rubber inlet when the customer has special requirements

Degree is implemented according to the processing technology.

Operation process

Check whether the equipment system software is normal.

The best part of sand sticking adjusting base plate sand cloth for EPC casting, tighten the base plate firmly.

When there is no problem, restart the belt conveyor so that it can operate normally.

Turn on the vacuum cleaner, clamp hold the casting by hand with common tools, grind polish the residual rubber inlet repair welding position of the casting on the backing plate.

Place the ground casting in the commodity box.

At the end of the work, immediately cut off the power, remove the machine equipment on the spot.

common problem

Ensure production safety without accidents.

It is forbidden to polish two castings two people on the surface of a sand wheel.

During grinding polishing, the actual operation shall be careful to prevent the casting being worn.

For castings with high technological properties, they shall be ground then polished.

When installing the emery cloth, it shall be installed properly according to the direction marked on the emery cloth, the wrong direction shall be allowed to prevent safety accidents.

Shot blasting rust removal

Application shot blasting equipment: crawler shot blasting machine, suspension shot blasting cleaning equipment.
